Part# DPP101



Description:

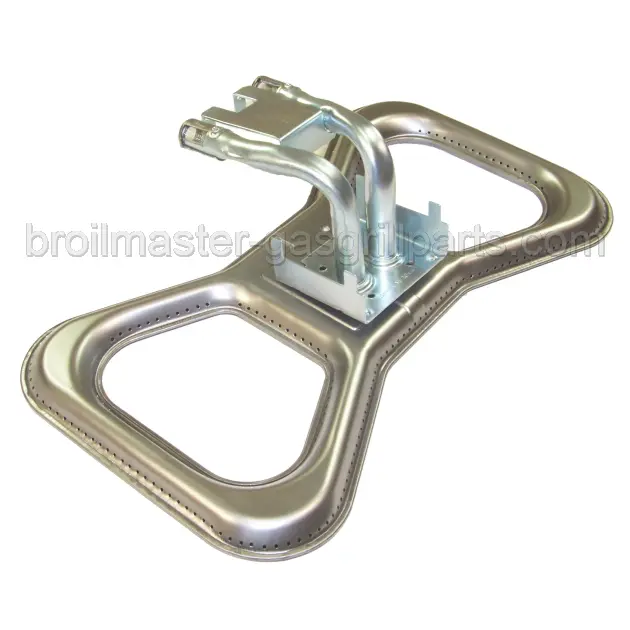

DPP101 Stainless Steel Burner and venturi assembly for P3, D3, DU, U3 and S3 grills manufactured after 2011.

This part is a Broilmaster re-engineered version of the original stainless bowtie burner. It is the Broilmaster replacement for the original DPP101 burner assembly.

Official Broilmaster statement: This redesigned burner may be slightly smaller, but it is the factory recommended direct replacement.
This burner and orifice combination is rated at 40,000 Btu - the same as your existing burner - and will provide even temperature across the cooking surface.

NOTE: See DPP101-R for an aftermarket exact fit version of the original 21inch burner that fits ALL P3, D3, S3, and U3 grill heads.



NOTE: Part DPP101 is the factory authorized replacement for the following parts, which are no longer available:
  • 878531
  • B070434
  • B100476


Dimension Front-To-Back: 9 1/2”

Dimension Side-To-Side: 17”

Material: stainless steel

Weight: 2.5

$115.83

Qty






DPP101 fits these Broilmaster grill models:
  • D3
  • D3 (1990s)
  • D3BL (2003)
  • D3BL-1
  • D3BL-1 (2003)
  • D3NWO (1990s)
  • P3
  • P3BL (2003)
  • P3BL-1
  • P3BLN-1
  • P3FBL (2003)
  • P3FBL-1
  • P3FBLN-1
  • P3FGY (2003)
  • P3FGY-1
  • P3FGYN-1
  • P3GY (2002)
  • P3GY (2003)
  • P3GY-1
  • P3GYN-1
  • P3HG (2003)
  • P3HG-1
  • P3HGN-1
  • P3S-1
  • P3SN-1
  • P4
  • P4GY (2002)
  • P4HG (2002)
  • S3
  • U3
