Grill model: T3CFN

FREE Shipping over $79 PlayButton
Broilmaster grill

Genuine Broilmaster factory replacement parts

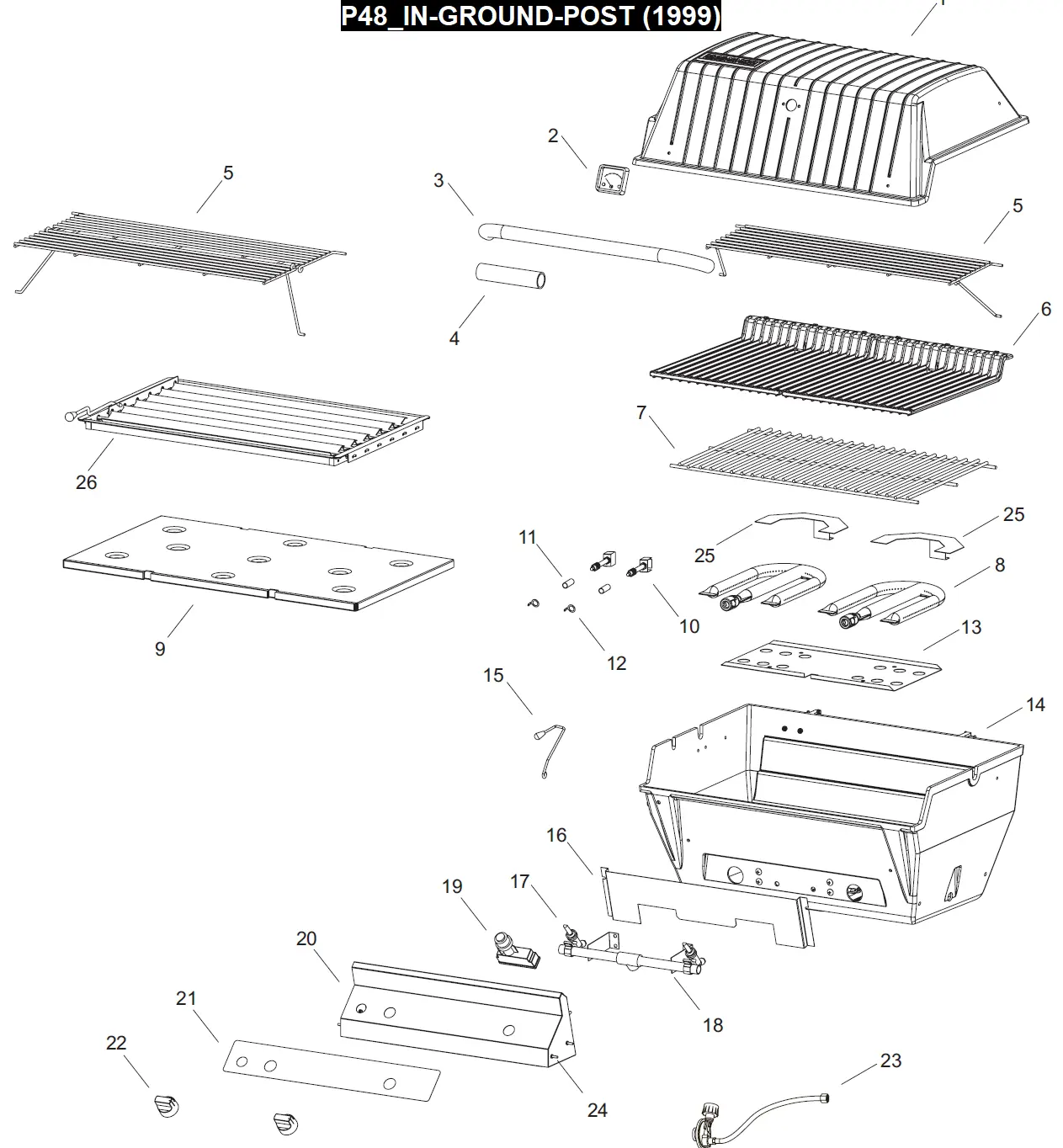

Here's the parts we have for model T3CFN
Home     Contact Us     Privacy Policy     Return Policy     Shipping Policy     About Us
Orders $79 and over get Free USA shipping


2
TG-2B Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2" bolt centers. Stainless steel case.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$11.95
3
B070486 Stainless steel Handle (Handle Only) -- See B076793, Fits P4/D4.
Requires mounting bolt holes to be on 21 inch centers. The overall length of the handle is 22 1/4". When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B070486 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100811
MORE...


$34.30
4
B073097 Foam Grip for S/S Handles, Fits P3, P4, P5. MORE...

$10.64
5
B072695 Stainless steel warming rack (Retract-A-Rack, Fold-Out). Fits C3, D3, P3, Q3, R3, T3. MORE...

$82.94
6
62503 Cast iron "water fall style/mutliple level" cooking grids (set of 3).
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$206.91
6
WM-GRID2 Aftermarket solid stainless steel cooking grid for Broilmaster and Warm Morning (by Locke Stove) size 3 grill head. Fits: P3, D3, DU3, U3, S3, G3. These grids are comparable to Broilmaster's old porcelain steel grids, which are no longer available.

Sold individually, three (3) required.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$49.86
6
DPA111 Stainless steel rod cooking grids for size 3 grill head (set of 2).
  • Heavy gauge 8mm rod construction
  • Restaurant quality stainless steel
  • 2 piece set
  • Fits: P3, D3, DU3, R3, U3, S3, G3, and R3.

Note: This is the same as part# B101281. Also replaces cast iron grid DPP103, which is no longer available.

Note: Part DPA111 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100467
  • BM:B100468
  • BM:B101270
  • BM:B101281
  • BM:B101282
  • BM:DPP103
MORE...


$161.19
8
DPP104 Stainless steel U-Tube Burner, set of two (one burner is .5 (half) of DPP104). If only one burner is needed, see part # B101030. Fits T3. Also replaces part # B101098.

Note: Part DPP104 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B101098
MORE...


$135.88
9

DPA103 Stainless steel Flavor Screen for Broilmaster size 3 grill head. Standard on some models. Flavor Screen is designed as an alternative to briquettes in your grill. Same as part# B100418. Also replaces part# B100418. MORE...


$130.81
10
B101212 Collector Box Ass. (Single Piece, 2 required), fits all T3. Also replaces part# B101031.

Note: Part B101212 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B101031
MORE...


$27.72
11
B069743 Collector Box Spacer, Fits P 3/4 D 3/4/5

Note: Part B069743 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B069343
MORE...


$4.68
12
B069747 Ground Lug, Fits All Models MORE...

$3.21
13
DPP106 Stainless steel heat shield. Fits T3 (all). Also replaces part# B101045.
AKA part# B101104.

Note: Part DPP106 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B101045
  • BM:B101104
MORE...


$57.53
15
DPA106 Adjustable Lid Stop Kit, All Models. Also replaces part #s B100421, B101231, B061281 and 061281.

Note: Part DPA106 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076521
  • BM:B100421
  • BM:B101231
MORE...


$32.38
16
B101046 Valve Heat Shield, T3 (all) MORE...

$20.36
18
B101112 Valve and Manifold - Natural gas, fits T3 MORE...

$105.77
19
B072218 Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4
  • Uses 1 AA battery (not included)
  • Requires 7/8" mounting hole MORE...

$48.51
20
B101066 Control Panel Assy MORE...

$58.70
21
B101028 Label, Fits T3 (all) MORE...

$22.88
22
R3918 Knob-Burners-Main and Side, Fits SSG-36-1, T3 (all).
  • Off position D-Value: 12 o'clock
  • Knob diameter: 2 1/2"
  • Socket diameter: 5/16"
  • Knob shaft: None (flat)

Note: Part R3918 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:BR3918
MORE...


$16.05
24
B073963 Shelf Pin and Nut, Fits All Models MORE...

$3.35
25
B101154 Burner Shield for T3 MORE...

$10.12
99
B053585 Hugga-Rack Rotisserie kit, turns standard Rotisserie into Hugga-Rack.
  • Does not pierce meat. Clamps for the retention of juices
  • Fits P3/D3 and P4/D4 grills. Complete rotisserie set
  • Contains: grid backets, hugga-rack grids, spit rod, center frame, hardware.Does not include rotisserie motor MORE...

$154.10
99
BCK1004 Conversion kit, LP to Natural Gas. Also known as part number B101062, SET OF TWO orifices. Fits T3, R3, R3B grill heads. Includes:
  • Two (2) B101063 orifices #49 drill size
  • One (1) conversion label B100033
  • Gas conversion instructions

Note: Part BCK1004 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B101063
  • BM:B101276
MORE...


$15.59
99
BCK1007 Conversion Kit, Natural Gas to LP. Fits T3 grill heads. Includes:
  • Two (2) B101111 orifice, LPG #1.25MM
  • One (1) B069756 hose and regulator
  • One (1) conversion label # B100273
  • Gas conversion instructions MORE...

$42.71
99
DPA109 Deluxe black full-length cover for P, D, R, S, and T series grills with one stationary side shelf.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models
  • Top to bottom: 41"
  • Side to side: 54" (a little narrower at top)
  • Front to back - Top: 14"
  • Front to back - Bottom: 18" MORE...

$74.45
99
DPA110 Deluxe black full-length cover for P, D, R, S, and T series grills with two stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models.
  • 40 3/8" tall
  • 61 3/8in side-to-side
  • 21 1/2" front-to-back MORE...

$81.79
99
DPA51 Heavy Duty Traditional Rotisserie. Includes:
  • B100932 Rotisserie Motor
  • B100078 Motor Bracket (includes screws and wing nuts)
  • B076850 Meat Forks (1 pair)
  • B076849 Locator Sleeve (AKA spit rod bushing)
  • B076851 Spit rod
  • B076854 Spit rod handle and thumbnut
  • B076852 Counter balance assembly. Replaces part# B076706.

Note: Part DPA51 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076706
MORE...


$159.16
99
DPA8 Deluxe black full-length cover for P, D, R, S, and T series grills with no stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models. MORE...

$71.08
?
CLA-AC0394 High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15" x 24".
  • Top quality product
  • Each briquette measure 2" x 2"
  • Self cleaning
  • Great heat distibution, retains heat longer
  • Can be used on all grills that use briquettes or lava rock
  • Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

  • 59 briquetes covers an area apprimately 15" x 24"
  • 70 briquetes covers an area apprimately 17" x 26"
  • 90 briquetes covers an area apprimately 17" x 33"
MORE...


$59.13
?
BQ-3A BBQ'er choice porcelain grill briquets. The finest available.
  • Self-Cleaning Porcelain Briquettes.
  • Made of fired porcelain for even heat transfer.
  • Virtually indestructible.
  • About 56 pieces covers approximately 310 square inches.
  • Made in USA.
NOTE: MHP model TJK requires two (2) bags.
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part BQ-3A is the factory authorized replacement for the following parts, which are no longer available:

  • BQ-5
MORE...


$50.28
?
TG-1B Universal clip-on temperature gauge fits most grills. Find out if your grill is still hot at a glance.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$6.70
?
DPA116 Flare Busters Flat Ceramic Pads. For P3, T3, D3, H3. Package of 12. Each tile measures 7 1/4 " x 3 1/2". Used with B101061 rack. MORE...

$60.03
?
00600 Aluminized steel radiation shield. Installs below burner in some Amberlight, TEMCO, Charbroil, and Broilmaster models.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$28.64
?
RSG3 Aluminized steel radiation shield for G3, G3TX, S3, and U3. See part RSGSS for high quality stainless version of this part.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$28.64
?
R3918 Knob-Burners-Main and Side, Fits SSG-36-1, T3 (all).
  • Off position D-Value: 12 o'clock
  • Knob diameter: 2 1/2"
  • Socket diameter: 5/16"
  • Knob shaft: None (flat)

Note: Part R3918 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:BR3918
MORE...


$16.05
?
B057804 Hinge Pin, Fits all models. MORE...

$1.71
?
B057805 Bridge Pin, Fits all models. MORE...

$1.71
?
B101047 Hardware Pack, T3 (all) MORE...

$27.92
?
B101048 Ground Wire, T3 (all) MORE...

$6.50
?
B101061 Briquette Rack. Fits all size 3 grill head models. Manufacturer's Note: Some versions of this rack may include stainless steel extension brackets. See part DPA116 for Ceramic Flare Busters.

Note: Part B101061 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B063066
MORE...


$53.05
