Grill model: S5CP

FREE Shipping over $79 PlayButton
Broilmaster grill

Genuine Broilmaster factory replacement parts

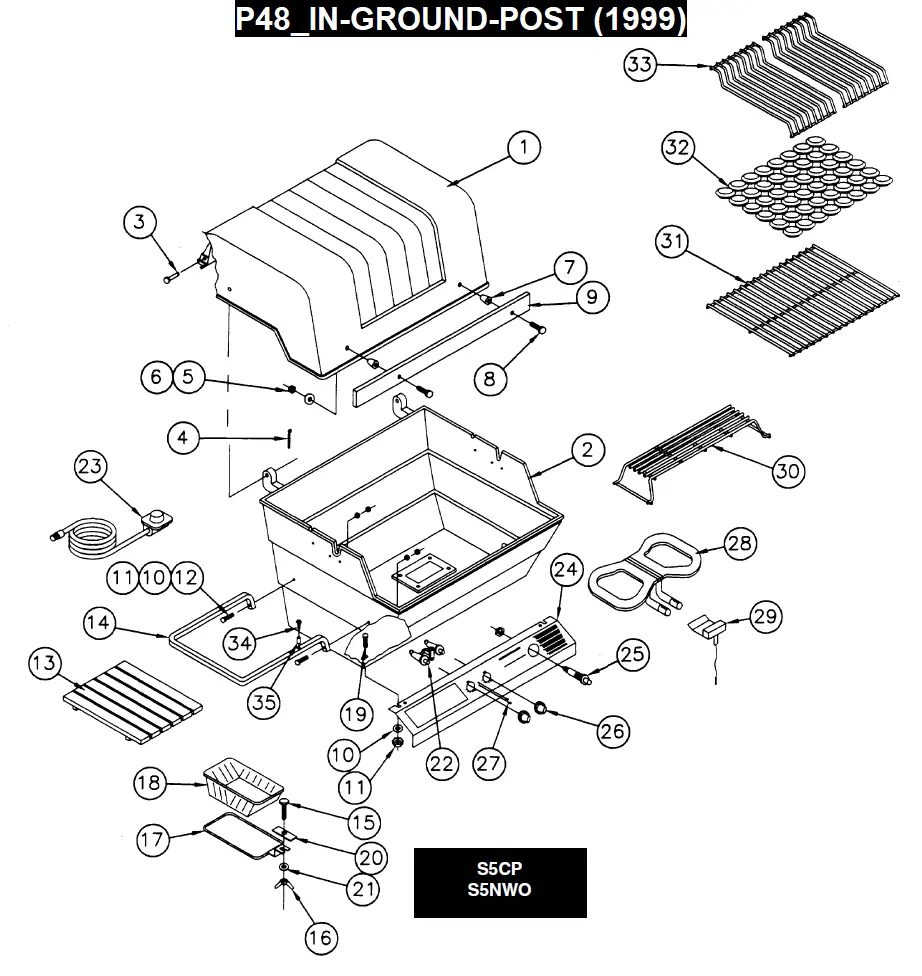

Here's the parts we have for model S5CP
Home     Contact Us     Privacy Policy     Return Policy     Shipping Policy     About Us
Orders $79 and over get Free USA shipping


3
B057804 Hinge Pin, Fits all models. MORE...

$1.71
4
B057805 Bridge Pin, Fits all models. MORE...

$1.71
9
B102492 Stainless steel lid handle. Requires mounting bolt holes to be on 21 inch centers. Includes mounting bolts. Overall length of the handle is 22 1/4" long. When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B102492 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076313
  • BM:B076793
MORE...


$34.30
17
B060336 Grease Tray Bracket, Fits S5. Dimensions includes from the end of the support bracket to the opposite opposite side. MORE...

$10.64
18
B060337 Disposable aluminum grease pan, sold individually, approximately 6" x 3.5" x 2" deep. Fits carts. MORE...

$4.71
23
B069756 Hose and Regulator W/ Q.C.C. (female pipe fitting), fits all BRM LP models to 1999, SBG2500, 2501, 2801 MORE...


$29.48
26
B070084 Knob, Black (New Style), Fits P3/4/4, SR3, D3/4/5/2.
Also replaces part# B070286, which no longer available.
  • Off position D-Value: 3 o'clock
  • Knob diameter: 1 5/8"
  • Socket diameter: 5/16"
  • Knob shaft: 1/2"

Note: Part B070084 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070286
MORE...


$10.12
28
B053791 Burner and dual venturi assembly. For portable cart models, one burner bracket stabilizing arm B101757 is needed, sold individually. Assembly includes:
  • Stainless steel bowtie burner
  • Twin venturi
  • All necessary gasketes and screws
  • Fits: D5, P5, S5, S2, Aspen MORE...

$98.53
31
B070404 Briquet Rack (Porcelain Enameled Steel Rod), Fits P5/D5/S5

Note: Part B070404 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B825830
MORE...


$59.08
33
B878361 Stainless steel cooking grid, sold individually, number required varies by gril. This part recently changed from porcelain steel rod to stainless rod. Fits S5/D5/P5. MORE...

$73.95
35
B662325 Space Lid Stop, Fits All Models MORE...

$3.35
99
B053585 Hugga-Rack Rotisserie kit, turns standard Rotisserie into Hugga-Rack.
  • Does not pierce meat. Clamps for the retention of juices
  • Fits P3/D3 and P4/D4 grills. Complete rotisserie set
  • Contains: grid backets, hugga-rack grids, spit rod, center frame, hardware.Does not include rotisserie motor MORE...

$154.10
99
B056596 Ignitor Kit, Push Button, fits S5, others.

Note: Part B056596 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100412
MORE...


$41.75
99
B058126 Collector Box Only, Fits S5 MORE...

$26.66
99
DPA109 Deluxe black full-length cover for P, D, R, S, and T series grills with one stationary side shelf.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models
  • Top to bottom: 41"
  • Side to side: 54" (a little narrower at top)
  • Front to back - Top: 14"
  • Front to back - Bottom: 18" MORE...

$74.45
99
DPA110 Deluxe black full-length cover for P, D, R, S, and T series grills with two stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models.
  • 40 3/8" tall
  • 61 3/8in side-to-side
  • 21 1/2" front-to-back MORE...

$81.79
99
DPA51 Heavy Duty Traditional Rotisserie. Includes:
  • B100932 Rotisserie Motor
  • B100078 Motor Bracket (includes screws and wing nuts)
  • B076850 Meat Forks (1 pair)
  • B076849 Locator Sleeve (AKA spit rod bushing)
  • B076851 Spit rod
  • B076854 Spit rod handle and thumbnut
  • B076852 Counter balance assembly. Replaces part# B076706.

Note: Part DPA51 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076706
MORE...


$159.16
99
DPA8 Deluxe black full-length cover for P, D, R, S, and T series grills with no stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models. MORE...

$71.08
?
45887 Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks. MORE...

$24.95
?
B048474 S5 Venturi, fits S5. This is the venturi that is used in burner assembly B053791. MORE...

$29.90
?

B063065 Radiation Shield (Heat & Wind Deflector), Fits All Models. MORE...


$40.30
?
B100241 Conv. Kit (LP), BCK241, Fits S5/P5/D5 MORE...

$20.98
?
B100443 BCK308 Conversion Kit (propane to natural). Fits P5,D5,S5.
Includes
  • NG12 Natural Gas Hose with quick-connect
  • Natural gas twin valve assembly with orifices. MORE...

$134.86
?
B100444 Conversion Kit (propane to natural). Fits P5/D5/S5 MORE...

$20.36
