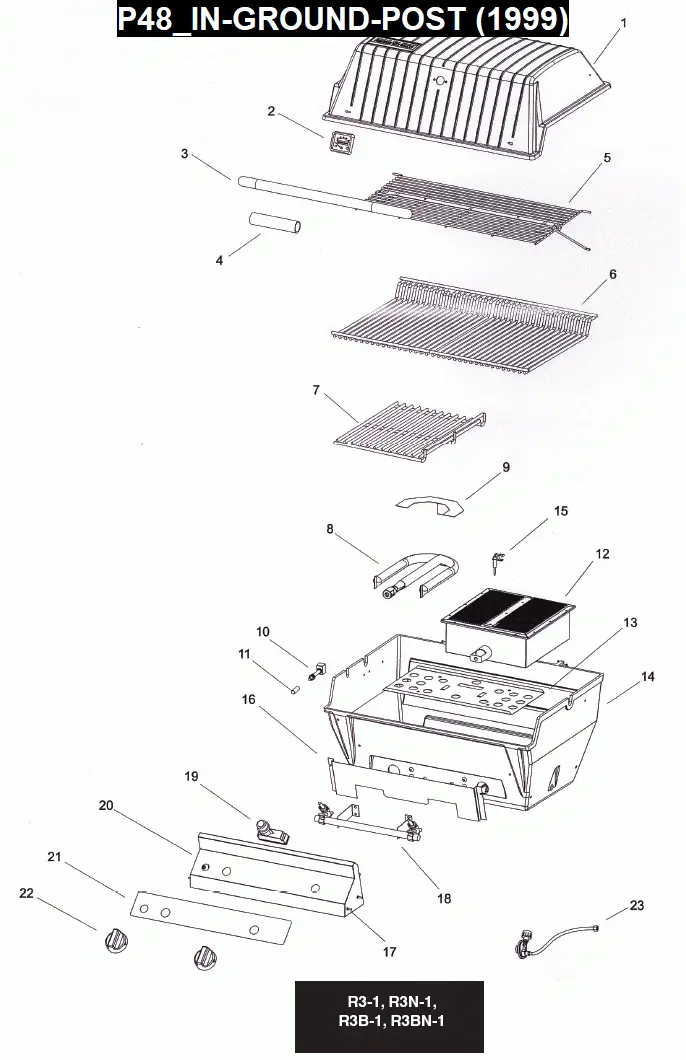

Grill model: R3-1

2

TG-2B Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2" bolt centers. Stainless steel case.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

3

B070486 Stainless steel Handle (Handle Only) -- See B076793, Fits P4/D4.
Requires mounting bolt holes to be on 21 inch centers. The overall length of the handle is 22 1/4". When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B070486 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B100811

MORE...

4

B073097 Foam Grip for S/S Handles, Fits P3, P4, P5. MORE...

5

B072695 Stainless steel warming rack (Retract-A-Rack, Fold-Out). Fits C3, D3, P3, Q3, R3, T3. MORE...

6

DPA111 Stainless steel rod cooking grids for size 3 grill head (set of 2).

• Heavy gauge 8mm rod construction
• Restaurant quality stainless steel
• 2 piece set
• Fits: P3, D3, DU3, R3, U3, S3, G3, and R3.

Note: This is the same as part# B101281. Also replaces cast iron grid DPP103, which is no longer available.

Note: Part DPA111 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B100467
• BM:B100468
• BM:B101270
• BM:B101281
• BM:B101282
• BM:DPP103

MORE...

12

B102180 Infrared burner, with removable screen. Includes B101271 electrode and connecting wire. Used in R3, two required and used in R3B, one required.

Note: Part B102180 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B101269
• BM:B102181

MORE...

13

DPP106 Stainless steel heat shield. Fits T3 (all). Also replaces part# B101045.
AKA part# B101104.

Note: Part DPP106 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B101045
• BM:B101104

MORE...

15

B101271 Electrode and wire for infrared burner Ignitor (2 req for R3, 1 req for R3B) fits R3, R3B). MORE...

16

B101046 Valve Heat Shield, T3 (all) MORE...

17

B073963 Shelf Pin and Nut, Fits All Models MORE...

18

B101356 LP Manifold and valves assembly - fits R3-1. The manifold is 13 7/16" long with two mounting brackets and two valves. MORE...

19

B072218 Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4

• Uses 1 AA battery (not included)
• Requires 7/8" mounting hole MORE...

20

B101033 Control Panel, Fits T3 (all) MORE...

22

R3918 Knob-Burners-Main and Side, Fits SSG-36-1, T3 (all).

• Off position D-Value: 12 o'clock
• Knob diameter: 2 1/2"
• Socket diameter: 5/16"
• Knob shaft: None (flat)

Note: Part R3918 is the factory authorized replacement for the following parts, which are no longer available:

• BM:BR3918

MORE...

23

B069756 Hose and Regulator W/ Q.C.C. (female pipe fitting), fits all BRM LP models to 1999, SBG2500, 2501, 2801 MORE...

99

B053585 Hugga-Rack Rotisserie kit, turns standard Rotisserie into Hugga-Rack.

• Does not pierce meat. Clamps for the retention of juices
• Fits P3/D3 and P4/D4 grills. Complete rotisserie set
• Contains: grid backets, hugga-rack grids, spit rod, center frame, hardware.Does not include rotisserie motor MORE...
