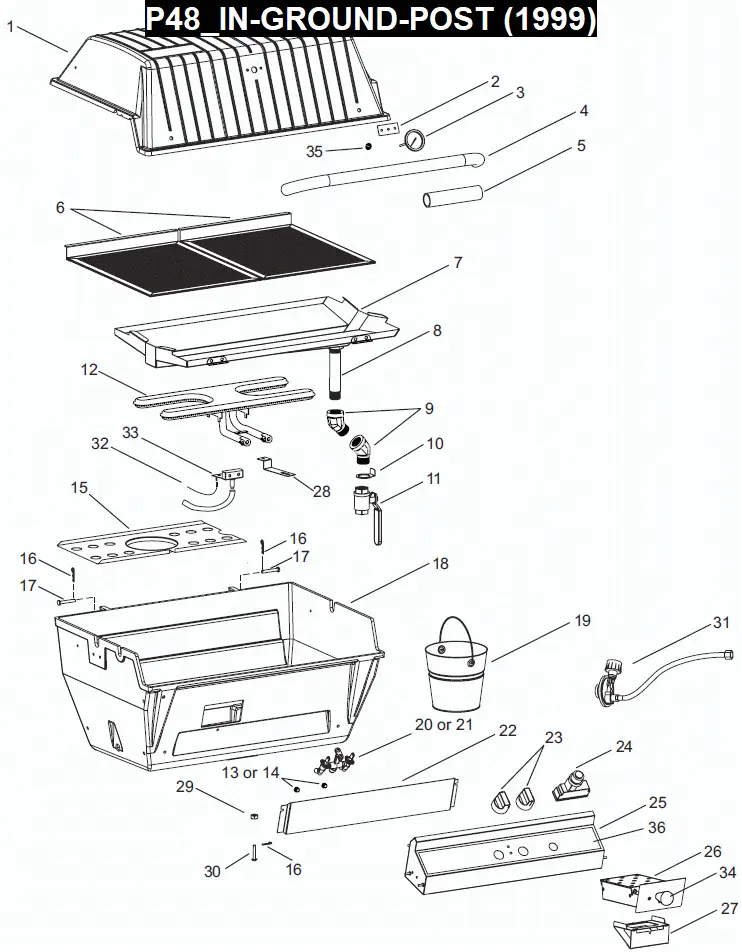

Grill model: Q3X

2

B101782 MOUNTING PLATE, HEAT INDICATOR Fits models Q3X. MORE...

4

B070486 Stainless steel Handle (Handle Only) -- See B076793, Fits P4/D4.
Requires mounting bolt holes to be on 21 inch centers. The overall length of the handle is 22 1/4". When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B070486 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B100811

MORE...

5

B073097 Foam Grip for S/S Handles, Fits P3, P4, P5. MORE...

7

B101718 DRIP TRAY FITS Q3X

Note: Part B101718 is the factory authorized replacement for the following parts, which are no longer available:

• 10342-E400
• 10342-E401

MORE...

8

B101747 NIPPLE, 3/4 NPT X 5 1/2 GALVANIZED - Also used in Grease Tray B101718 for Q3X.

Note: Part B101747 is the factory authorized replacement for the following parts, which are no longer available:

• 10342-E400
• 10342-E401

MORE...

9

B101769 ELBOW, 45 STREET ELL 3/4 NPT X 3/4 NPT GALVANIZED MORE...

10

B101780 HOOK, BUCKET MORE...

11

B101778 VALVE, DRAIN PIPE MORE...

12

DPP113 Stainless Steel Oval Burner Kit. Fits models Q3X. Note: Q3X models 2012 requires Collector Box Kit DPP117, sold separately.

Mfrs Note: The Q3X models were originally made with an "H" burner. It was changed to an oval burner shortly after introducing. The current oval burner will fit all units.

Note: Part DPP113 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B101733
MORE...

13

DPA106 Adjustable Lid Stop Kit, All Models. Also replaces part #s B100421, B101231, B061281 and 061281.

Note: Part DPA106 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B076521
• BM:B100421
• BM:B101231

MORE...

13

P315 ORIFICE #60 FITS Q3X MORE...

15

B101742 Genuine OEM stainless steel heat and wind deflection shield. MORE...

16

B057805 Bridge Pin, Fits all models. MORE...

17

B057804 Hinge Pin, Fits all models. MORE...

19

B101779 BUCKET MORE...

20

B101420 VALVE Assy - LP. Uses orifice P182. MORE...

22

B101622 CONTROL PANEL SHIELD MORE...

23

B070084 Knob, Black (New Style), Fits P3/4/4, SR3, D3/4/5/2.
Also replaces part# B070286, which no longer available.

• Off position D-Value: 3 o'clock
• Knob diameter: 1 5/8"
• Socket diameter: 5/16"
• Knob shaft: 1/2"

Note: Part B070084 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B070286

MORE...

24

B072218 Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4

• Uses 1 AA battery (not included)
• Requires 7/8" mounting hole MORE...

26

B101724 Drawer smoker box without knob part # BB062998 and without drawer support part # B101781. MORE...

27

B101781 Drawer smoker box support. MORE...

28

B101757 Burner bracket, sold as part # DPP118 that includes bolt, screw, nut and cotter pin, not shown in photo. Fits Q3X (all), and P3X, H3X, P4X, H4X with the igniter collector box attached to the burner.

Note: Part B101757 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B101648

MORE...

31

B069756 Hose and Regulator W/ Q.C.C. (female pipe fitting), fits all BRM LP models to 1999, SBG2500, 2501, 2801 MORE...

32

B072684 Ground wire with female spade ends for battery-operated ignitors; 12" long. Fits All Electronic Models MORE...

33

B101992 Collector box assembly for Q3X. and Q3XN. Kit includes preassembled collector box, electrode and connector wire with a flat/spade end. Collector box has small tab for ground wire B072684 which is not included in the kit.

Note: Part B101992 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B101805

MORE...

34

B062998 Knob for drawer smoker box..Fits: PC Cart/DC Cart. MORE...

36

B101517 Stick-on control panel label (for electronic ignition models), Fits P3/D3.

Note: Part B101517 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B072686

MORE...

99

BCK1014 Conversion Kit, LP to Natural Gas. Fits Q3X and Q3PK1 grill heads. Includes:

• One (1) B101421 dual NG valve assembly
• Two (2) P208 orifices 1.45mm
• One (1) Conversion label NG B100033
• Gas conversion instructions MORE...

99

BCK1015 Conversion Kit, Natural Gas to LP. Fits Q3XN grill head. Includes:

• One (1) B069756 LP hose & regulator
• One (1) B101420 dual LP valve assembly
• Two (2) P315 orifices #60 drill size
• One (1) Conversion label LP B100273
• Gas conversion instructions MORE...
