Grill model: P5 (1990s)

FREE Shipping over $79 PlayButton
Broilmaster grill

Genuine Broilmaster factory replacement parts

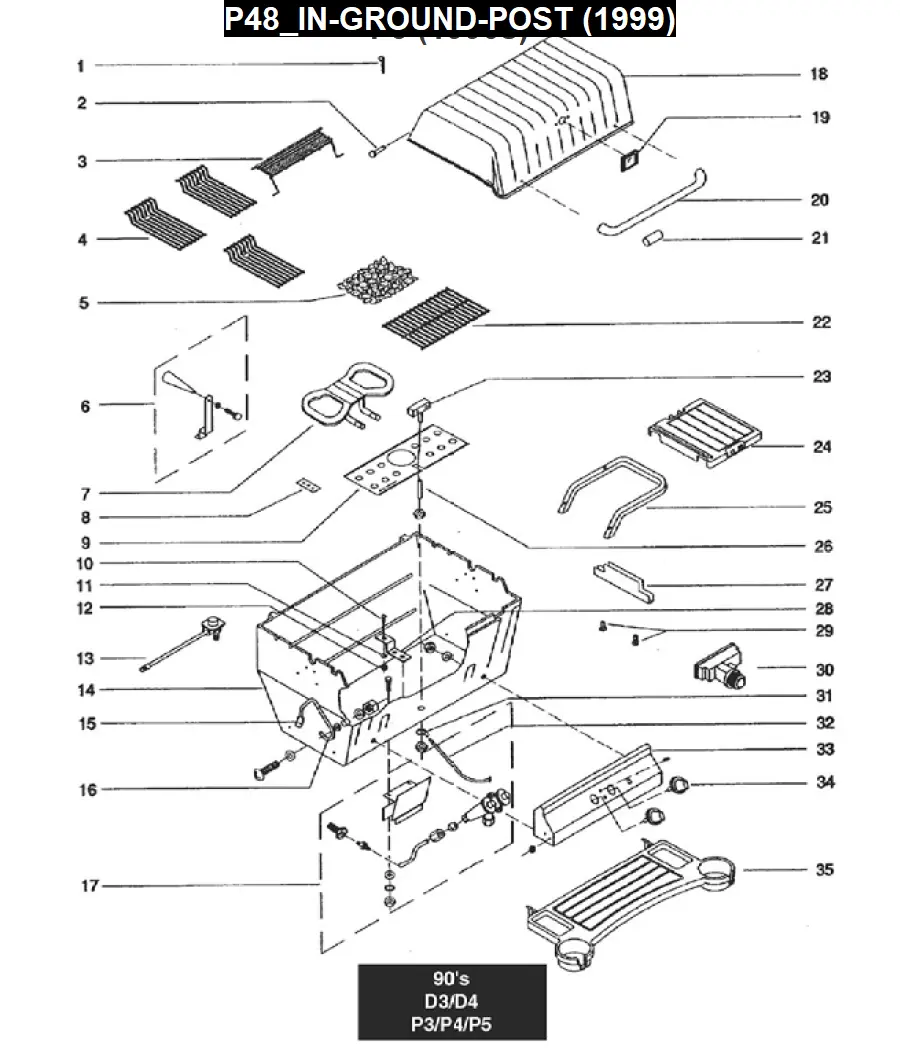

Here's the parts we have for model P5 (1990s)
Home     Contact Us     Privacy Policy     Return Policy     Shipping Policy     About Us
Orders $79 and over get Free USA shipping


1
B057805 Bridge Pin, Fits all models. MORE...

$1.71
2
B057804 Hinge Pin, Fits all models. MORE...

$1.71
3
B072697 Chrome Warming Rack. Fits P5, D5, S5.
  • Overall dimensions: 6" x 23" x 2 1/8"
  • Cooking surface dimensions: 6" x 21" MORE...

$46.71
4
B878361 Stainless steel cooking grid, sold individually, number required varies by gril. This part recently changed from porcelain steel rod to stainless rod. Fits S5/D5/P5. MORE...

$73.95
6
DPA107 Grid Lifter Kit. Also replaces kit part# B064539. NOTE: The photo of the part is currently incorrect. The manufacturer has changed the design to a one-piece 7" long 1 5/8" wide stainless-steel grid lifter with a round hanging hole on the handle end.

Note: Part DPA107 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B064539
MORE...


$27.92
7
B053791 Burner and dual venturi assembly. For portable cart models, one burner bracket stabilizing arm B101757 is needed, sold individually. Assembly includes:
  • Stainless steel bowtie burner
  • Twin venturi
  • All necessary gasketes and screws
  • Fits: D5, P5, S5, S2, Aspen MORE...

$98.53
8
B906236 Burner Stabilizer Kit. Fits pre 2002 grills.

Note: Part B906236 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B906180
MORE...


$10.12
9

B063065 Radiation Shield (Heat & Wind Deflector), Fits All Models. MORE...


$40.30
13
B069756 Hose and Regulator W/ Q.C.C. (female pipe fitting), fits all BRM LP models to 1999, SBG2500, 2501, 2801 MORE...


$29.48
19
TG-2B Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2" bolt centers. Stainless steel case.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$11.95
20
B070486 Stainless steel Handle (Handle Only) -- See B076793, Fits P4/D4.
Requires mounting bolt holes to be on 21 inch centers. The overall length of the handle is 22 1/4". When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B070486 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100811
MORE...


$34.30
21
B073097 Foam Grip for S/S Handles, Fits P3, P4, P5. MORE...

$10.64
22
B070404 Briquet Rack (Porcelain Enameled Steel Rod), Fits P5/D5/S5

Note: Part B070404 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B825830
MORE...


$59.08
23
B100446 Collector Box (Electronic Ignitor), electrode, and connector wire with female spade end. Please refer to DPP116 Kit if ground wire needed and two screws; does include sleeve # B069743. Fits P3/P4

Note: Part B100446 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B072701
MORE...


$27.72
26
B069743 Collector Box Spacer, Fits P 3/4 D 3/4/5

Note: Part B069743 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B069343
MORE...


$4.68
27
B100769 Bracket, shelf hold down.

Note: Part B100769 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B072017
MORE...


$6.50
30
B072218 Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4
  • Uses 1 AA battery (not included)
  • Requires 7/8" mounting hole MORE...

$48.51
31
B069747 Ground Lug, Fits All Models MORE...

$3.21
32
B072684 Ground wire with female spade ends for battery-operated ignitors; 12" long. Fits All Electronic Models MORE...

$6.50
34
B070084 Knob, Black (New Style), Fits P3/4/4, SR3, D3/4/5/2.
Also replaces part# B070286, which no longer available.
  • Off position D-Value: 3 o'clock
  • Knob diameter: 1 5/8"
  • Socket diameter: 5/16"
  • Knob shaft: 1/2"

Note: Part B070084 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070286
MORE...


$10.12
99
B053585 Hugga-Rack Rotisserie kit, turns standard Rotisserie into Hugga-Rack.
  • Does not pierce meat. Clamps for the retention of juices
  • Fits P3/D3 and P4/D4 grills. Complete rotisserie set
  • Contains: grid backets, hugga-rack grids, spit rod, center frame, hardware.Does not include rotisserie motor MORE...

$154.10
99
DPA109 Deluxe black full-length cover for P, D, R, S, and T series grills with one stationary side shelf.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models
  • Top to bottom: 41"
  • Side to side: 54" (a little narrower at top)
  • Front to back - Top: 14"
  • Front to back - Bottom: 18" MORE...

$74.45
99
DPA110 Deluxe black full-length cover for P, D, R, S, and T series grills with two stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models.
  • 40 3/8" tall
  • 61 3/8in side-to-side
  • 21 1/2" front-to-back MORE...

$81.79
99
DPA51 Heavy Duty Traditional Rotisserie. Includes:
  • B100932 Rotisserie Motor
  • B100078 Motor Bracket (includes screws and wing nuts)
  • B076850 Meat Forks (1 pair)
  • B076849 Locator Sleeve (AKA spit rod bushing)
  • B076851 Spit rod
  • B076854 Spit rod handle and thumbnut
  • B076852 Counter balance assembly. Replaces part# B076706.

Note: Part DPA51 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076706
MORE...


$159.16
99
DPA8 Deluxe black full-length cover for P, D, R, S, and T series grills with no stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models. MORE...

$71.08
?
TG-1B Universal clip-on temperature gauge fits most grills. Find out if your grill is still hot at a glance.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$6.70
?
45887 Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks. MORE...

$24.95
?
DPP116 Collector Box Kit - (Mounts to Burner). Includes collector box/electrode/connector wire, ground wire and screws. Does not include sleeve # B069743. Fits: P3X, P4X, H3X, H4X all Q3X 2012 with H burner. MORE...

$29.90
?
B100241 Conv. Kit (LP), BCK241, Fits S5/P5/D5 MORE...

$20.98
?
B100444 Conversion Kit (propane to natural). Fits P5/D5/S5 MORE...

$20.36
