Grill model: P4XN

FREE Shipping over $79

PlayButton

Broilmaster grill

Genuine Broilmaster factory replacement parts

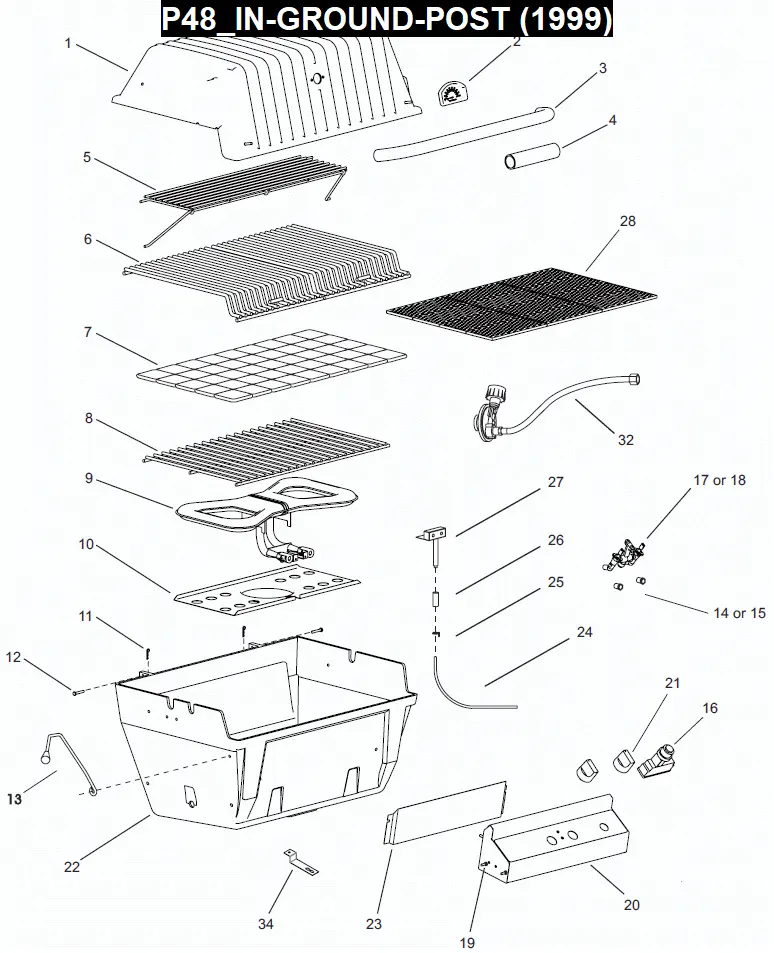

Here's the parts we have for model P4XN

Home Contact Us Privacy Policy Return Policy Shipping Policy About Us

Orders $79 and over get Free USA shipping

2

TG-2B Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2" bolt centers. Stainless steel case.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$11.95

3

B070486 Stainless steel Handle (Handle Only) -- See B076793, Fits P4/D4.
Requires mounting bolt holes to be on 21 inch centers. The overall length of the handle is 22 1/4". When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B070486 is the factory authorized replacement for the following parts, which are no longer available:

BM:B100811

$34.30

4

B073097 Foam Grip for S/S Handles, Fits P3, P4, P5. MORE...

$10.64

5

B072696 Stainless steel warming rack (Retract-A-Rack). Fits P4 and D4.

Note: Part B072696 is the factory authorized replacement for the following parts, which are no longer available:

B060757

$56.36

6

DPA112 Heavy duty stainless steel cooking grids for size 4 grill head.

Heavy gauge 5/16" stainless rods
Restaurant quality stainless steel
2 piece set
Fits P4, D4, U4
Same as part B101320 (was sold individually)

Note: Part DPA112 is the factory authorized replacement for the following parts, which are no longer available:

BM:B101321
BM:DPA102
BM:DPP12

$156.13

8

B067449 Briquet Rack - This briquette rack is porcelain enameled steel rods; however, there have been times when the manufacturer made these in stainless steel without a price difference. Fits P4/D4. See partDPA117 for Ceramic Flare Busters. MORE...

$41.75

8

B101061 Briquette Rack. Fits all size 3 grill head models. Manufacturer's Note: Some versions of this rack may include stainless steel extension brackets. See part DPA116 for Ceramic Flare Busters.

Note: Part B101061 is the factory authorized replacement for the following parts, which are no longer available:

BM:B063066

$53.05

9

DPP112 Stainless Steel Bowtie Burner for P4X (Display Pkg)

Note: Part DPP112 is the factory authorized replacement for the following parts, which are no longer available:

BM:B100496
BM:B101513

$107.84

10

B063065 Radiation Shield (Heat & Wind Deflector), Fits All Models. MORE...

$40.30

11

B057805 Bridge Pin, Fits all models. MORE...

$1.71

12

B057804 Hinge Pin, Fits all models. MORE...

$1.71

13

DPA106 Adjustable Lid Stop Kit, All Models. Also replaces part #s B100421, B101231, B061281 and 061281.

Note: Part DPA106 is the factory authorized replacement for the following parts, which are no longer available:

BM:B076521
BM:B100421
BM:B101231

$32.38

14

P182 Burner Orifice #55 (LP) MORE...

$11.74

15

P265 Orifice, (NAT) (20, 000 BTU) Fits VFHS-20/10T; VFSM, VFSV, VFSR-30, H3XN, P4XN (all) MORE...

$10.12

16

B072218 Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4

Uses 1 AA battery (not included)
Requires 7/8" mounting hole MORE...

$48.51

17

B101420 VALVE Assy - LP. Uses orifice P182. MORE...

$33.12

18

B101421 VALVE Assy - NAT. Uses orifice P265. MORE...

$33.12

19

B073963 Shelf Pin and Nut, Fits All Models MORE...

$3.35

20

B101515 Control Panel and Label Assy, Stainless Steel fits P4X MORE...

$74.07

20

B101518 Stick-on control panel label for D4, P4, and other size 4 grills.

Note: Part B101518 is the factory authorized replacement for the following parts, which are no longer available:

BM:B072197

$17.27

21

B070084 Knob, Black (New Style), Fits P3/4/4, SR3, D3/4/5/2.
Also replaces part# B070286, which no longer available.

Off position D-Value: 3 o'clock
Knob diameter: 1 5/8"
Socket diameter: 5/16"
Knob shaft: 1/2"

Note: Part B070084 is the factory authorized replacement for the following parts, which are no longer available:

BM:B070286

$10.12

23

B101621 CONTROL PANEL SHIELD MORE...

$10.64

24

B072684 Ground wire with female spade ends for battery-operated ignitors; 12" long. Fits All Electronic Models MORE...

$6.50

25

B069747 Ground Lug, Fits All Models MORE...

$3.21

26

B069743 Collector Box Spacer, Fits P 3/4 D 3/4/5

Note: Part B069743 is the factory authorized replacement for the following parts, which are no longer available:

BM:B069343

$4.68

27

B100446 Collector Box (Electronic Ignitor), electrode, and connector wire with female spade end. Please refer to DPP116 Kit if ground wire needed and two screws; does include sleeve # B069743. Fits P3/P4

Note: Part B100446 is the factory authorized replacement for the following parts, which are no longer available:

BM:B072701

$27.72

32

B069756 Hose and Regulator W/ Q.C.C. (female pipe fitting), fits all BRM LP models to 1999, SBG2500, 2501, 2801 MORE...

$29.48

34

B101757 Burner bracket, sold as part # DPP118 that includes bolt, screw, nut and cotter pin, not shown in photo. Fits Q3X (all), and P3X, H3X, P4X, H4X with the igniter collector box attached to the burner.

Note: Part B101757 is the factory authorized replacement for the following parts, which are no longer available:

BM:B101648

$14.56

99

BCK1000 Conversion Kit, LP to NATURAL GAS. Fits P3, P4, P3S, D3, D4. Includes:

Two (2) B069003 NG manifolds with orifices
One (1) conversion label B100033
Gas conversion instructions

Note: Part BCK1000 is the factory authorized replacement for the following parts, which are no longer available:

BM:B100243

$38.30

99

BCK1001 Conversion Kit, Natural Gas to LP. Fits P3, P4, P3S, D3, D4. Includes:

Two (2) B069002 LP manifolds with orifices
One (1) conversion label B100273
Gas conversion instructions

Note: Part BCK1001 is the factory authorized replacement for the following parts, which are no longer available:

BM:B100239

$38.30

99

BCK1002 Conversion Kit, LP to Natural Gas. Fits P3, P4, P3S, D3, D4. Includes:

Two (2) B069003 NG manifolds with orifices
One (1) NG12 12' Quick Disconnect Sturgis Hose Kit
NG hose has 3/8" inside diameter
One (1) conversion label B100033
Gas conversion instructions

Note: Part BCK1002 is the factory authorized replacement for the following parts, which are no longer available:

BM:B100244

$108.67

99

BCK1003 Conversion Kit, natural gas to LP. Fits P3, P4, P3S, D3, D4. Includes:

Two (2) B069002 LP manifolds with orifices
One (1) B069756 LP hose and regulator
One (1) conversion label B100273
Gas conversion instructions

Note: Part BCK1003 is the factory authorized replacement for the following parts, which are no longer available:

BM:B100240

$70.01

99

BCK1010 Conversion Kit, LP to Natural Gas. Fits P4X, H3X (P3X 2015 and newer) grill heads. Includes:

One (1) B101421 dual natural gas valve assembly
Two (2) P265 orifices #49 drill size
One (1) Conversion label NG B100033
Gas conversion instructions MORE...

$50.51

?

45887 Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks. MORE...

$24.95

?

CLA-AC0394 High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15" x 24".

Top quality product
Each briquette measure 2" x 2"
Self cleaning
Great heat distibution, retains heat longer
Can be used on all grills that use briquettes or lava rock
Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

59 briquetes covers an area apprimately 15" x 24"
70 briquetes covers an area apprimately 17" x 26"
90 briquetes covers an area apprimately 17" x 33"

$59.13

?

BQ-3A BBQ'er choice porcelain grill briquets. The finest available.

Self-Cleaning Porcelain Briquettes.
Made of fired porcelain for even heat transfer.
Virtually indestructible.
About 56 pieces covers approximately 310 square inches.
Made in USA.

NOTE: MHP model TJK requires two (2) bags.
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part BQ-3A is the factory authorized replacement for the following parts, which are no longer available:

BQ-5

$50.28

?

TG-1B Universal clip-on temperature gauge fits most grills. Find out if your grill is still hot at a glance.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$6.70

?

B069002 LP Manifold W/Orifice, Fits P3, P4, D3, D4. Sold individually. See part number BKC1001 for set of two.

Note: Part B069002 is the factory authorized replacement for the following parts, which are no longer available:

BM:B056649

$22.88

?

B069003 NATURAL GAS Manifold W/Orifice, Fits P3, P4, D3, D4. Sold individually. See part number BCK1000 for set of two.

Note: Part B069003 is the factory authorized replacement for the following parts, which are no longer available:

BM:B056647

$22.88

?

DPA116 Flare Busters Flat Ceramic Pads. For P3, T3, D3, H3. Package of 12. Each tile measures 7 1/4 " x 3 1/2". Used with B101061 rack. MORE...

$60.03

?

DPA117 Flare Buster Flat Ceramic Pads; consist of ten pieces, three of which are different size pieces. For P4, H4, D4. Requires B067449 Rack if replacing flavor screen. MORE...

$75.17

?

DPP116 Collector Box Kit - (Mounts to Burner). Includes collector box/electrode/connector wire, ground wire and screws. Does not include sleeve # B069743. Fits: P3X, P4X, H3X, H4X all Q3X 2012 with H burner. MORE...

$29.90

?

B101407 Flare Buster Flat Ceramic Flavor Enhancer Pad. Sold individually.

Note: Part B101407 is the factory authorized replacement for the following parts, which are no longer available:

BM:SB1425011008

$6.73
