Grill model: P3BL (2002)

FREE Shipping over $79 PlayButton
Broilmaster grill

Genuine Broilmaster factory replacement parts

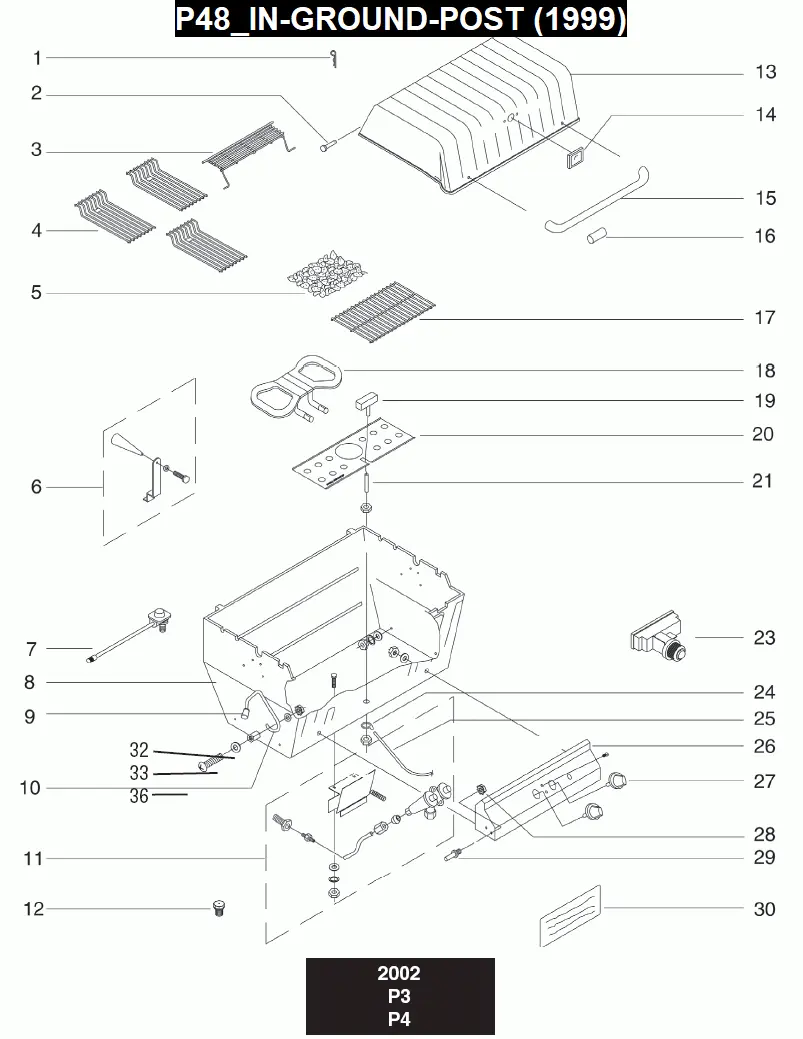

Here's the parts we have for model P3BL (2002)
Home     Contact Us     Privacy Policy     Return Policy     Shipping Policy     About Us
Orders $79 and over get Free USA shipping


1
B057805 Bridge Pin, Fits all models. MORE...

$1.71
2
B057804 Hinge Pin, Fits all models. MORE...

$1.71
3
B072695 Stainless steel warming rack (Retract-A-Rack, Fold-Out). Fits C3, D3, P3, Q3, R3, T3. MORE...

$82.94
4
62503 Cast iron "water fall style/mutliple level" cooking grids (set of 3).
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$206.91
4
WM-GRID2 Aftermarket solid stainless steel cooking grid for Broilmaster and Warm Morning (by Locke Stove) size 3 grill head. Fits: P3, D3, DU3, U3, S3, G3. These grids are comparable to Broilmaster's old porcelain steel grids, which are no longer available.

Sold individually, three (3) required.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$49.86
4
DPA111 Stainless steel rod cooking grids for size 3 grill head (set of 2).
  • Heavy gauge 8mm rod construction
  • Restaurant quality stainless steel
  • 2 piece set
  • Fits: P3, D3, DU3, R3, U3, S3, G3, and R3.

Note: This is the same as part# B101281. Also replaces cast iron grid DPP103, which is no longer available.

Note: Part DPA111 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100467
  • BM:B100468
  • BM:B101270
  • BM:B101281
  • BM:B101282
  • BM:DPP103
MORE...


$161.19
6
DPA107 Grid Lifter Kit. Also replaces kit part# B064539. NOTE: The photo of the part is currently incorrect. The manufacturer has changed the design to a one-piece 7" long 1 5/8" wide stainless-steel grid lifter with a round hanging hole on the handle end.

Note: Part DPA107 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B064539
MORE...


$27.92
7
B069756 Hose and Regulator W/ Q.C.C. (female pipe fitting), fits all BRM LP models to 1999, SBG2500, 2501, 2801 MORE...


$29.48
9
B100098 Grill top height adjuster bar knob, Fits All Models (was B225). MORE...

$6.50
10
DPA106 Adjustable Lid Stop Kit, All Models. Also replaces part #s B100421, B101231, B061281 and 061281.

Note: Part DPA106 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076521
  • BM:B100421
  • BM:B101231
MORE...


$32.38
11
B100514 Twin Natural Valve Assembly (male flare fitting). Used on all grills built after 2002 (Except T and R Seies).
    Includes:
  • B100517 Manifold mounting plate
  • B069003 (2) natural gas manifolds with orifices
  • B076789 Dual valve assembly

Note: Part B100514 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070502
MORE...


$95.62
11
B100515 Valve - LP w/ Hose and Regulator fits P3, P4, D3, D4.
Also replaces part B070501, which has been discontinued by Broilmaster.

Note: Part B100515 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070501
MORE...


$115.42
11A
B076789 Twin natural gas valve assembly. Fits P3/4 MORE...

$54.02
11B
B069002 LP Manifold W/Orifice, Fits P3, P4, D3, D4. Sold individually. See part number BKC1001 for set of two.

Note: Part B069002 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B056649
MORE...


$22.88
11B
B069003 NATURAL GAS Manifold W/Orifice, Fits P3, P4, D3, D4. Sold individually. See part number BCK1000 for set of two.

Note: Part B069003 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B056647
MORE...


$22.88
11C
B100517 Plate, Orifice Mounting, Fits P3, P4, D3, D4.

Note: Part B100517 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B064787
MORE...


$6.41
14
TG-2B Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2" bolt centers. Stainless steel case.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$11.95
15
B102492 Stainless steel lid handle. Requires mounting bolt holes to be on 21 inch centers. Includes mounting bolts. Overall length of the handle is 22 1/4" long. When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B102492 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076313
  • BM:B076793
MORE...


$34.30
16
B073097 Foam Grip for S/S Handles, Fits P3, P4, P5. MORE...

$10.64
17
B101061 Briquette Rack. Fits all size 3 grill head models. Manufacturer's Note: Some versions of this rack may include stainless steel extension brackets. See part DPA116 for Ceramic Flare Busters.

Note: Part B101061 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B063066
MORE...


$53.05
18
WM-BRN3-8 Aftermarket exact fit cast iron Bowtie Burner and twin venturi assembly for older Broilmaster and Warm Morning (by Locke Stove) grills. This burner assembly fits larger grills with upfront controls. Fits D3, S3, U3.
    Includes:
  • One (1) cast iron burner
  • One (1) plated steel twin curved venturi
  • All necessary gaskets and scews. MORE...

$164.25
18

B878531 Stainless Steel Bowtie Burner and venturi assembly for P3 D3. MORE...


$133.36
19
B100446 Collector Box (Electronic Ignitor), electrode, and connector wire with female spade end. Please refer to DPP116 Kit if ground wire needed and two screws; does include sleeve # B069743. Fits P3/P4

Note: Part B100446 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B072701
MORE...


$27.72
19A
B100402 Collector box kit for P3/P4 and D3/D4 with electronic igniters.

$34.30
19B
DPP20 Electronic igniter kit.

$56.36
20

B063065 Radiation Shield (Heat & Wind Deflector), Fits All Models. MORE...


$40.30
21
B069743 Collector Box Spacer, Fits P 3/4 D 3/4/5

Note: Part B069743 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B069343
MORE...


$4.68
23
B072218 Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4
  • Uses 1 AA battery (not included)
  • Requires 7/8" mounting hole MORE...

$48.51
24
B069747 Ground Lug, Fits All Models MORE...

$3.21
25
B072684 Ground wire with female spade ends for battery-operated ignitors; 12" long. Fits All Electronic Models MORE...

$6.50
26
B100751 Control Panel and Label Assembly, Stainless Steel (Electronic Ignitor) fits P3. For the control panel shield, see part number B100730.

Note: Part B100751 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B073070
  • BM:B073072
  • BM:B100152
MORE...


$74.45
26
B101517 Stick-on control panel label (for electronic ignition models), Fits P3/D3.

Note: Part B101517 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B072686
MORE...


$18.16
27
B070084 Knob, Black (New Style), Fits P3/4/4, SR3, D3/4/5/2.
Also replaces part# B070286, which no longer available.
  • Off position D-Value: 3 o'clock
  • Knob diameter: 1 5/8"
  • Socket diameter: 5/16"
  • Knob shaft: 1/2"

Note: Part B070084 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070286
MORE...


$10.12
29
B073963 Shelf Pin and Nut, Fits All Models MORE...

$3.35
32
B662325 Space Lid Stop, Fits All Models MORE...

$3.35
40
B906236 Burner Stabilizer Kit. Fits pre 2002 grills.

Note: Part B906236 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B906180
MORE...


$10.12
41
B905048 Stabilizer Bracket, Fits All Carts MORE...

$6.50
99
B053585 Hugga-Rack Rotisserie kit, turns standard Rotisserie into Hugga-Rack.
  • Does not pierce meat. Clamps for the retention of juices
  • Fits P3/D3 and P4/D4 grills. Complete rotisserie set
  • Contains: grid backets, hugga-rack grids, spit rod, center frame, hardware.Does not include rotisserie motor MORE...

$154.10
99
BCK1000 Conversion Kit, LP to NATURAL GAS. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069003 NG manifolds with orifices
  • One (1) conversion label B100033
  • Gas conversion instructions

Note: Part BCK1000 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100243
MORE...


$38.30
99
BCK1001 Conversion Kit, Natural Gas to LP. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069002 LP manifolds with orifices
  • One (1) conversion label B100273
  • Gas conversion instructions

Note: Part BCK1001 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100239
MORE...


$38.30
99
BCK1002 Conversion Kit, LP to Natural Gas. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069003 NG manifolds with orifices
  • One (1) NG12 12' Quick Disconnect Sturgis Hose Kit
  • NG hose has 3/8" inside diameter
  • One (1) conversion label B100033
  • Gas conversion instructions

Note: Part BCK1002 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100244
MORE...


$108.67
99
BCK1003 Conversion Kit, natural gas to LP. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069002 LP manifolds with orifices
  • One (1) B069756 LP hose and regulator
  • One (1) conversion label B100273
  • Gas conversion instructions

Note: Part BCK1003 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100240
MORE...


$70.01
99
BCK1008 Conversion Kit, LP to Natural Gas. Fits all P3X grill heads. Includes:
  • One (1) B101421dual natural gas valve assembly
  • Two (2) P300 orifices #48 drill size
  • One (1) Conversion label NG B100033
  • Gas conversion instructions MORE...

$55.19
99
BCK1009 Conversion Kit, Natural Gas to LP. Fits P3X (2014 and older) grill heads. Includes:
  • One (1) B069756 LP hose and regulator
  • One (1) B101420 dual LP gas valve assembly
  • Two (2) P204 orifices #54 drill size
  • One (1) Conversion label LP B100273
  • Gas conversion instructions MORE...

$78.12
99
DPA109 Deluxe black full-length cover for P, D, R, S, and T series grills with one stationary side shelf.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models
  • Top to bottom: 41"
  • Side to side: 54" (a little narrower at top)
  • Front to back - Top: 14"
  • Front to back - Bottom: 18" MORE...

$74.45
99
DPA110 Deluxe black full-length cover for P, D, R, S, and T series grills with two stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models.
  • 40 3/8" tall
  • 61 3/8in side-to-side
  • 21 1/2" front-to-back MORE...

$81.79
99
DPA51 Heavy Duty Traditional Rotisserie. Includes:
  • B100932 Rotisserie Motor
  • B100078 Motor Bracket (includes screws and wing nuts)
  • B076850 Meat Forks (1 pair)
  • B076849 Locator Sleeve (AKA spit rod bushing)
  • B076851 Spit rod
  • B076854 Spit rod handle and thumbnut
  • B076852 Counter balance assembly. Replaces part# B076706.

Note: Part DPA51 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076706
MORE...


$159.16
99
DPA8 Deluxe black full-length cover for P, D, R, S, and T series grills with no stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models. MORE...

$71.08
?
CLA-AC0394 High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15" x 24".
  • Top quality product
  • Each briquette measure 2" x 2"
  • Self cleaning
  • Great heat distibution, retains heat longer
  • Can be used on all grills that use briquettes or lava rock
  • Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

  • 59 briquetes covers an area apprimately 15" x 24"
  • 70 briquetes covers an area apprimately 17" x 26"
  • 90 briquetes covers an area apprimately 17" x 33"
MORE...


$59.13
?
BQ-3A BBQ'er choice porcelain grill briquets. The finest available.
  • Self-Cleaning Porcelain Briquettes.
  • Made of fired porcelain for even heat transfer.
  • Virtually indestructible.
  • About 56 pieces covers approximately 310 square inches.
  • Made in USA.
NOTE: MHP model TJK requires two (2) bags.
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part BQ-3A is the factory authorized replacement for the following parts, which are no longer available:

  • BQ-5
MORE...


$50.28
?
TG-1B Universal clip-on temperature gauge fits most grills. Find out if your grill is still hot at a glance.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$6.70
?
DPA116 Flare Busters Flat Ceramic Pads. For P3, T3, D3, H3. Package of 12. Each tile measures 7 1/4 " x 3 1/2". Used with B101061 rack. MORE...

$60.03
?
DPP116 Collector Box Kit - (Mounts to Burner). Includes collector box/electrode/connector wire, ground wire and screws. Does not include sleeve # B069743. Fits: P3X, P4X, H3X, H4X all Q3X 2012 with H burner. MORE...

$29.90
