Grill model: D4NWO (1990s)

FREE Shipping over $79 PlayButton
Broilmaster grill

Genuine Broilmaster factory replacement parts

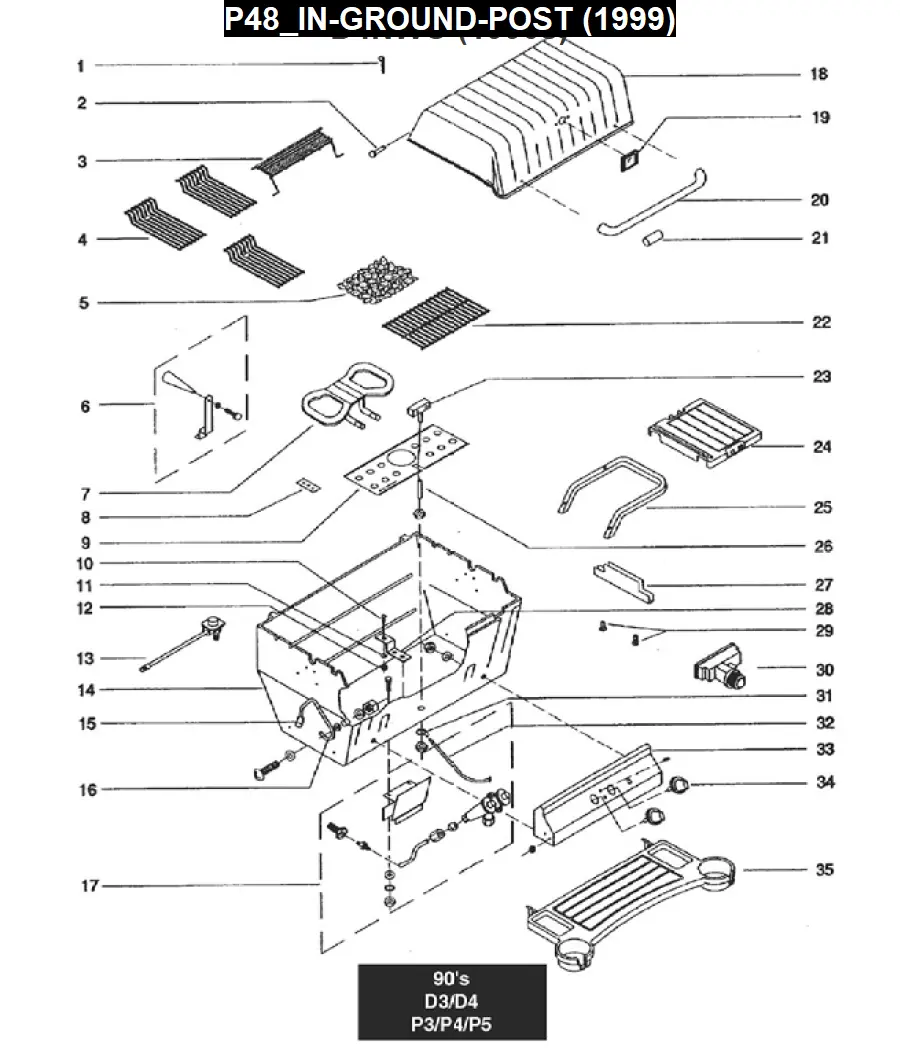

Here's the parts we have for model D4NWO (1990s)
Home     Contact Us     Privacy Policy     Return Policy     Shipping Policy     About Us
Orders $79 and over get Free USA shipping


1
B057805 Bridge Pin, Fits all models. MORE...

$1.71
2
B057804 Hinge Pin, Fits all models. MORE...

$1.71
3
B060757 Chrome Retract-a-Rack (B878289). Fits D4, P4 and H4. MORE...

$43.26
4
WM-GRID3 Aftermarket premium grade solid stainless steel cooking grid with 1/4" rods for Broilmaster and Warm Morning (by Locke Stove) size 4 grill head. Fits: P4, D4, U4, G4. An economical alternative to the other available Broilmaster grids. These grids are comparable to Broilmaster's porcelain steel grids, which are no longer available.

Sold individually, two (2 required).
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$49.81
4
62203 Cast iron "water fall style/multiple level" cooking grids (set of 3). Porcelain treated, glossy finish.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$226.10
4
DPA112 Heavy duty stainless steel cooking grids for size 4 grill head.
  • Heavy gauge 5/16" stainless rods
  • Restaurant quality stainless steel
  • 2 piece set
  • Fits P4, D4, U4
  • Same as part B101320 (was sold individually)

Note: Part DPA112 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B101321
  • BM:DPA102
  • BM:DPP12
MORE...


$156.13
6
DPA107 Grid Lifter Kit. Also replaces kit part# B064539. NOTE: The photo of the part is currently incorrect. The manufacturer has changed the design to a one-piece 7" long 1 5/8" wide stainless-steel grid lifter with a round hanging hole on the handle end.

Note: Part DPA107 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B064539
MORE...


$27.92
7
WM-BRN2-8 Exact fit aftermarket cast iron Bowtie Burner and twin venturi assembly for older Broilmaster and Warm Morning (by Locke Stove) grills. This burner and curved venturi fits smaller grills with upfront controls. Known to fit D4, S4, U4, U5 models.
    Includes:
  • One (1) cast iron burner
  • One (1) plate steel twin venturi
  • All necessary gaskets and scews. MORE...

$144.11
7
DPP102 Stainless steel burner and venturi assembly for D4, P4, U4, U5.
Also replaces part# B070435 and B100512.

Note: Part DPP102 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070435
  • BM:B100512
MORE...


$115.63
9

B063065 Radiation Shield (Heat & Wind Deflector), Fits All Models. MORE...


$40.30
15
B100098 Grill top height adjuster bar knob, Fits All Models (was B225). MORE...

$6.50
17
B100514 Twin Natural Valve Assembly (male flare fitting). Used on all grills built after 2002 (Except T and R Seies).
    Includes:
  • B100517 Manifold mounting plate
  • B069003 (2) natural gas manifolds with orifices
  • B076789 Dual valve assembly

Note: Part B100514 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070502
MORE...


$95.62
19
TG-2B Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2" bolt centers. Stainless steel case.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$11.95
20
B070486 Stainless steel Handle (Handle Only) -- See B076793, Fits P4/D4.
Requires mounting bolt holes to be on 21 inch centers. The overall length of the handle is 22 1/4". When using this handle to replace the longer 24" handle, drilling new holes is required.

Note: Part B070486 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100811
MORE...


$34.30
21
B073097 Foam Grip for S/S Handles, Fits P3, P4, P5. MORE...

$10.64
22
B101061 Briquette Rack. Fits all size 3 grill head models. Manufacturer's Note: Some versions of this rack may include stainless steel extension brackets. See part DPA116 for Ceramic Flare Busters.

Note: Part B101061 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B063066
MORE...


$53.05
34
B070084 Knob, Black (New Style), Fits P3/4/4, SR3, D3/4/5/2.
Also replaces part# B070286, which no longer available.
  • Off position D-Value: 3 o'clock
  • Knob diameter: 1 5/8"
  • Socket diameter: 5/16"
  • Knob shaft: 1/2"

Note: Part B070084 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B070286
MORE...


$10.12
37
B662325 Space Lid Stop, Fits All Models MORE...

$3.35
99
B053585 Hugga-Rack Rotisserie kit, turns standard Rotisserie into Hugga-Rack.
  • Does not pierce meat. Clamps for the retention of juices
  • Fits P3/D3 and P4/D4 grills. Complete rotisserie set
  • Contains: grid backets, hugga-rack grids, spit rod, center frame, hardware.Does not include rotisserie motor MORE...

$154.10
99
B055268 Hose and Regulator w/ Q.C.C. one (1) male pipe fitting. Fits all LP models to 1998. MORE...


$29.48
99
BCK1000 Conversion Kit, LP to NATURAL GAS. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069003 NG manifolds with orifices
  • One (1) conversion label B100033
  • Gas conversion instructions

Note: Part BCK1000 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100243
MORE...


$38.30
99
BCK1001 Conversion Kit, Natural Gas to LP. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069002 LP manifolds with orifices
  • One (1) conversion label B100273
  • Gas conversion instructions

Note: Part BCK1001 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100239
MORE...


$38.30
99
BCK1002 Conversion Kit, LP to Natural Gas. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069003 NG manifolds with orifices
  • One (1) NG12 12' Quick Disconnect Sturgis Hose Kit
  • NG hose has 3/8" inside diameter
  • One (1) conversion label B100033
  • Gas conversion instructions

Note: Part BCK1002 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100244
MORE...


$108.67
99
BCK1003 Conversion Kit, natural gas to LP. Fits P3, P4, P3S, D3, D4. Includes:
  • Two (2) B069002 LP manifolds with orifices
  • One (1) B069756 LP hose and regulator
  • One (1) conversion label B100273
  • Gas conversion instructions

Note: Part BCK1003 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B100240
MORE...


$70.01
99
DPA109 Deluxe black full-length cover for P, D, R, S, and T series grills with one stationary side shelf.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models
  • Top to bottom: 41"
  • Side to side: 54" (a little narrower at top)
  • Front to back - Top: 14"
  • Front to back - Bottom: 18" MORE...

$74.45
99
DPA110 Deluxe black full-length cover for P, D, R, S, and T series grills with two stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models.
  • 40 3/8" tall
  • 61 3/8in side-to-side
  • 21 1/2" front-to-back MORE...

$81.79
99
DPA51 Heavy Duty Traditional Rotisserie. Includes:
  • B100932 Rotisserie Motor
  • B100078 Motor Bracket (includes screws and wing nuts)
  • B076850 Meat Forks (1 pair)
  • B076849 Locator Sleeve (AKA spit rod bushing)
  • B076851 Spit rod
  • B076854 Spit rod handle and thumbnut
  • B076852 Counter balance assembly. Replaces part# B076706.

Note: Part DPA51 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076706
MORE...


$159.16
99
DPA8 Deluxe black full-length cover for P, D, R, S, and T series grills with no stationary side shelves.
  • Broilmaster premium cover
  • Deluxe heavy duty PVC/Polyester material
  • Custom fitted for listed models. MORE...

$71.08
?
CLA-AC0394 High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2" apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15" x 24".
  • Top quality product
  • Each briquette measure 2" x 2"
  • Self cleaning
  • Great heat distibution, retains heat longer
  • Can be used on all grills that use briquettes or lava rock
  • Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

  • 59 briquetes covers an area apprimately 15" x 24"
  • 70 briquetes covers an area apprimately 17" x 26"
  • 90 briquetes covers an area apprimately 17" x 33"
MORE...


$59.13
?
62203 Cast iron "water fall style/multiple level" cooking grids (set of 3). Porcelain treated, glossy finish.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$226.10
?
BQ-3A BBQ'er choice porcelain grill briquets. The finest available.
  • Self-Cleaning Porcelain Briquettes.
  • Made of fired porcelain for even heat transfer.
  • Virtually indestructible.
  • About 56 pieces covers approximately 310 square inches.
  • Made in USA.
NOTE: MHP model TJK requires two (2) bags.
NOTE: This is an Aftermarket part, NOT an original factory part.

Note: Part BQ-3A is the factory authorized replacement for the following parts, which are no longer available:

  • BQ-5
MORE...


$50.28
?
TG-1B Universal clip-on temperature gauge fits most grills. Find out if your grill is still hot at a glance.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$6.70
?
B069002 LP Manifold W/Orifice, Fits P3, P4, D3, D4. Sold individually. See part number BKC1001 for set of two.

Note: Part B069002 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B056649
MORE...


$22.88
?
B069003 NATURAL GAS Manifold W/Orifice, Fits P3, P4, D3, D4. Sold individually. See part number BCK1000 for set of two.

Note: Part B069003 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B056647
MORE...


$22.88
?
DPA116 Flare Busters Flat Ceramic Pads. For P3, T3, D3, H3. Package of 12. Each tile measures 7 1/4 " x 3 1/2". Used with B101061 rack. MORE...

$60.03
?
03500 36" wire with two female spade connectors for side burner igniters (not for use with rotary or piezo ignitors).
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$5.42
?
IG-18B 20" igniter wire with two (2) female spade connectors.
NOTE: This is an Aftermarket part, NOT an original factory part. MORE...

$4.93
?
DPA106 Adjustable Lid Stop Kit, All Models. Also replaces part #s B100421, B101231, B061281 and 061281.

Note: Part DPA106 is the factory authorized replacement for the following parts, which are no longer available:

  • BM:B076521
  • BM:B100421
  • BM:B101231
MORE...


$32.38
