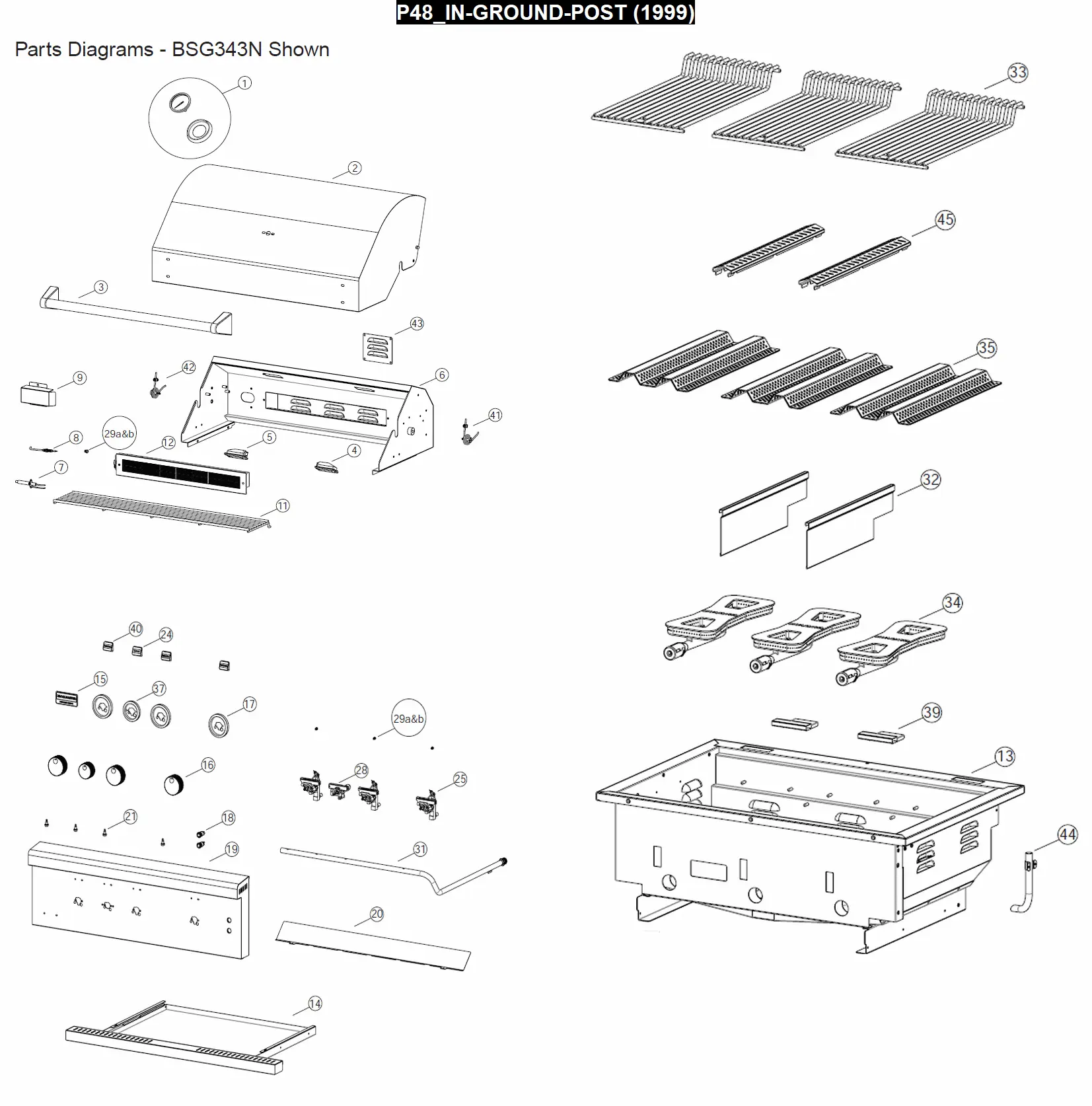

Grill model: BSG343N

1

BR0001 Temperature Indicator Assy MORE...

2

BR0003 Grill Hood (req Handle and Heat Indicator), 34-in MORE...

3

BR0006 Handle, for 34-in Grill Hood MORE...

4

BR0008 Interior Light Assy, Right, 26/34/42-in MORE...

5

BR0009 Interior Light Assy, Left, 26/34-in MORE...

6

BR0011 Back Cover for 34-in Grill MORE...

7

BR0013 Igniter & Wire, 48-in MORE...

8

BR0014 Thermocouple - 48-in MORE...

9

BR0015 Igniter/Thermocouple Cover MORE...

10

BR0016 Gas Line, 1/4-in x 48-in MORE...

11

BR0018 Warming Rack for 34-in Grill MORE...

12

BR0020 Infrared Rear Burner for 34-in Grill MORE...

13

BR0023 Firebox, 34-in MORE...

14

BR0026 Drip Tray, 34-in MORE...

15

BR0028 Badge, Broilmaster Logo MORE...

16

BR0029 Control Knob MORE...

17

BR0030 Bezel, Main Burner MORE...

18

BR0031 Switch, Pushbutton MORE...

19

BR0033 Control Panel, 34-in MORE...

20

BR0036 LED Heat Shield, 34-in MORE...

21

BR0038 LED MORE...

22

BR0040 LED Wiring Harness, 34-in MORE...

23

BR0042 Power Supply Harness MORE...

24

BR0043 Badge, Rear Burner MORE...

25

BR0044 Valve, Main Burner, Natural Gas MORE...

26

BR0045 Valve Grommet MORE...

27a

BR0046 Orifice, 2.08 mm MORE...

27b

BR0047 Orifice, 1.30 mm MORE...

28

BR0048 Valve, Rear Burner, Natural Gas MORE...

29a

BR0049 Orifice, 1.50 mm MORE...

29b

BR0050 Orifice, 1.10 mm MORE...

30

BR0051 Transformer MORE...

31

BR0053 Gas Manifold, 34-in MORE...

32

BR0055 Heat Separator MORE...

33

BR0057 Heavy-duty, multi-level stainless Cooking Grid, Fits G Series Elite Edition 34" grill models. MORE...

34

BR0059 Cast stainless BowTie Main Burner. Genuine Broilmaster part. MORE...

35

BR0060 Flare Control Vaporizer for Broilmaster G Series stainless steel grills. MORE...

36

BR0061 Regulator, Propane and Nat MORE...

37

BR0062 Bezel, Rear Burner MORE...

38

BR0063 Control Knob, Rear Burner MORE...

39

BR0064 Flame Carryover, 26-in MORE...

40

BR0065 Badge, Main Burner MORE...

41

BR0066 Hood Spring Assy, Right, 34 and 42-in MORE...

42

BR0067 Hood Spring Assy, Left, 34 and 42-in MORE...

43

BR0068 Rear Burner Orifice Cover MORE...

44

BR0069 Lighting Tube, 26-in MORE...

?

CLA-WS0040 Universal premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can be used in any grill wide enough inside for the 24" rack.

• Far superior to the original porcelain coated steel rack
• Rests on your existing cooking grids.
• Solid 1/4" 304 stainless steel rods.
• Stands 3.75 inches tall.
• Made in USA.

NOTE: Before ordering this universal rack, please verify your grill has enough space to accommodate it. What's required? MORE...

?

BSABF12N Side Burner - Double, 12-inch, Slide in MORE...

?

BSABW16N Side Burner - Power, 16-inch, Slide in MORE...

?

BSACV34L Cover for 34-inch Grill on Cart MORE...

?

BSACV34S Cover for 34-inch Built-In Grill MORE...

?

BSAD1722 Single Door, 17-inch W x 22-in. H MORE...

?

BSAD2422 Single Door, 24-inch W x 22-in. H MORE...

?

BSAD3422D Double Doors, 34-inch W x 22-in. H MORE...

?

BSAF12DN Side Burner, 12-inch, Drop in MORE...

?

BSASL34 Insulated Sleeve for 34-inch Grill MORE...

?

BSATY Smoker Tray - Drop-In MORE...

?

BSAVR Infrared Sear Burner (replaces one Bowtie Burner) MORE...

?

BSAW2022D Double Drawer, 20-inch W x 22-in. H MORE...

?

BSAW2022 Single Drawer - for Propane Tank, 20-inch W x 22-in. H MORE...

?

BSAW3422SD Single Door W/Double Drawer, 34-inch W x 22-in. H MORE...

?

NG12 Quick disconnect 3/8" natural gas 12' Sturgis hose and coupling kit. The inside diameter of the hose is 3/8" and the outside diameter of the hose is about 5/8". Also replaces part# B100262.

Note: Part NG12 is the factory authorized replacement for the following parts, which are no longer available:

• BM:B100262

MORE...
